Black PC ABS 16 Cores FTTH Fiber Optic Splitter Box For Splitter Cassette / Steel Tube

Product Categories

YINGDA TECHNOLOGY LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Black PC ABS 16 Cores FTTH Fiber Optic Splitter Box For Splitter Cassette / Steel Tube

Name: Black PC ABS 16 Cores FTTH Fiber Optic Splitter Box For Splitter Cassette Steel Tube
Brand: Yingda
Price: 1 USD

Quality Black PC ABS 16 Cores FTTH Fiber Optic Splitter Box For Splitter Cassette / Steel Tube for sale

Brand Name : Yingda

Model Number : FDB0216V-116SA

Certification : ISO,SGS

Place of Origin : china

MOQ : 100pcs

Price : negotiable

Payment Terms : Western Union, T/T, L/C, MoneyGram

Supply Ability : 50000PCS/Month

Delivery Time : 7days

Packaging Details : 1pc/box, 10pcs/carton

material : abs+pc

color : gray, black

application : FTTH, FTTB FTTX networks, outoor

product name : 16 cores fiber distribution box, fiber optic termination box

waranty : 3 years

size : 287*172*102mm

connector : SC/APC

SPLITTER : 1:16 mini fiber optic plc splitter

key feature : mid span cable port

Contact Now

Wall Mount Black PC ABS 16 Cores FTTH Fiber Optic Distribution Box for Splitter Cassette or Steel Tube

FDB0216V Mid span fiber optical distribution box is a high density solution for FTTH next generation networks, it provide and manage maximum 16 cores fiber termination in a limited space. It can be wall mounting or pole mounted indoor and outdoor application. IP65 waterproof grade.

Specifications:

Model	FDB0216V
Material	ABS+PCS
Cable port	2round ports, 1mid span port, 16outputs for drop cable
Size(WHD)	287172102 mm
Max capacity	16 cores
Adapter qty	16 SC
PLC splitter	1x2,1x4,1x8,1x16 steel tube PLC splitter
Color	black, gray

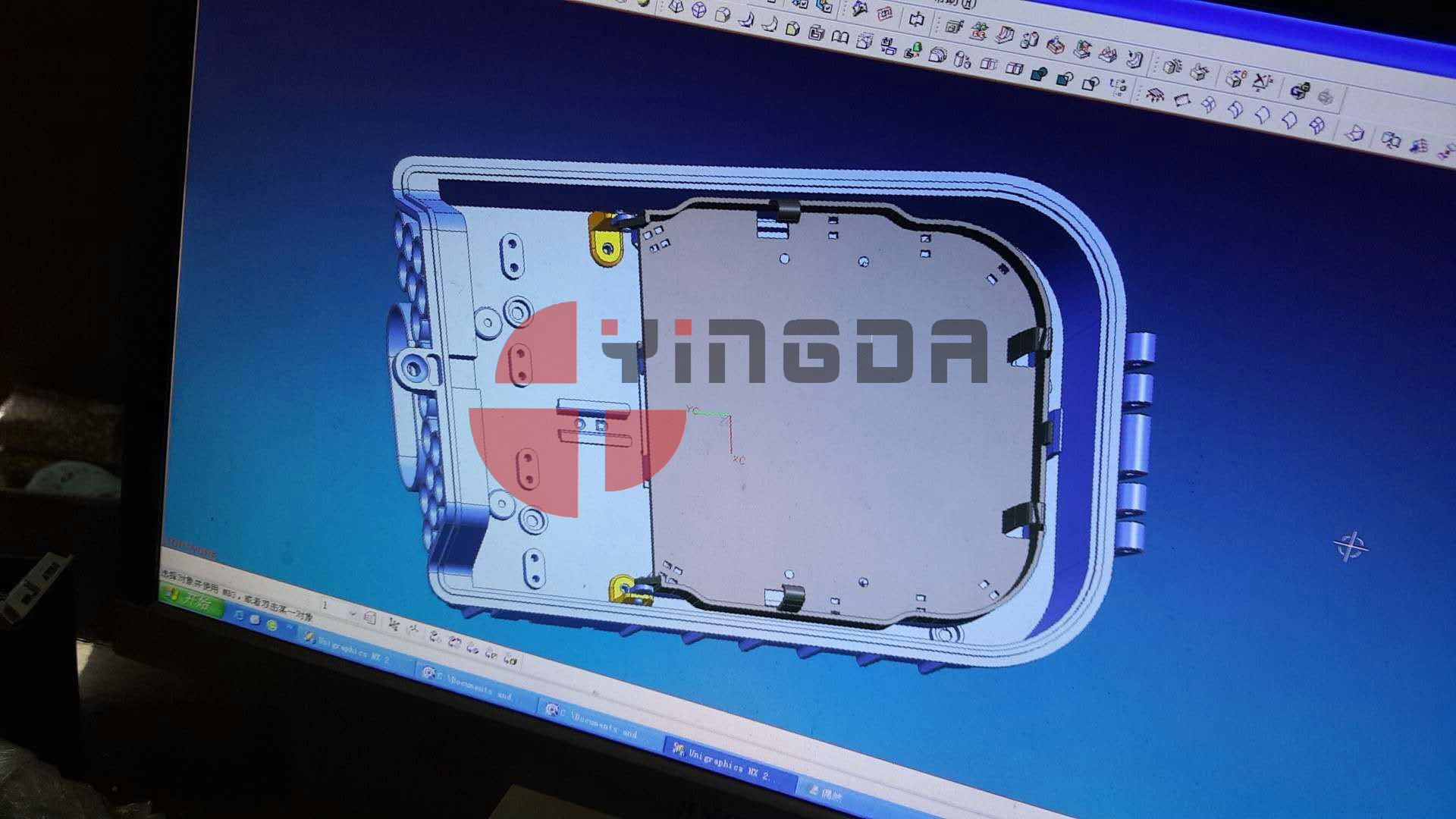

Box Drawing:

Black PC ABS 16 Cores FTTH Fiber Optic Splitter Box For Splitter Cassette / Steel Tube

Accessory list:

Wall mounting kits	4pcs
Screws	4pcs
Cable tie	10pcs
Heat shrink protection sleeve	16pcs
Key	1pc
Buffer tube	1pc
Pole mount kits	1set -optional, if need, charge additionally
Adapters	18pcs -optional, if need, charge additionally
Plc splitter	1x8, 1x16 -optional, if need, charge additionally

Feature

It is made of high impact plastic material, high strength, good performance
Can accommodate 1pc 1x16 or 2pcs 1x8 PLC mini splitter with SC Connector
Anti-UV, Ultra violet resistant and rainfall resistant.
Wall mounted, pole mounted
Max. Hold 16 pcs SC or LC duplex adapters, max. 16cores fusio splice
1pc mid span ports, 2 round cable port, 16 pcs FTTH 2*3mm drop cable outports
Pre-install SC adapter or micro splitter, pigtails available.
IP65 level for outdoor use

Application

Telecommunication Networks
WAN,LAN ,CATV Networks
Data communications Networks
FTTH access terminal network (FAT)
