Outdoor 24 Port SC APC Couplers ODB Fiber Optic Splitter Box
24 Port FTTH ODB Optical Fiber Cable Splitter Termaintion Box SC-APC Couplers Outdoor IP65 Gray
FDB0224M is access terminal box for FTTH network. It connect feeder cable or distribution cable to subscriber’s drop cable with PLC splitter. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Specification
| Model | FDB0224M-A | FDB0224M-B |
| Dimension(A*B*C) | 345*220*95mm |
| Max.Capacity | 48cores=4*12F (single fiber) |
| Cable ports | 1mid span, 2 cable glands, 24out |
| Cable diameter | 1mid span:Φ14.5mm, 1cable gland:Φ7-12mm, 24 out:2*Φ3mm |
| Splitter quantity | 1x16 or 3pc 1x8 steel tube | 1x16 or 2pc 1x8 LGX module |
| Adapter quantity | 24SC | -- |
| Color | Grey / black |
FDB0224M Optical Distribution Box Features
a box will configuration with 4pcs splice tray,each tray fusion splice 12cores, total 48cores.There is enough fiber routing or storage area, and 1splitter tube fix slot embedded in the middle of the tray.
The trays are fixed during transporatio with velcro to keep it in place, and the cover and bottom of the box is hinge design, not separate, which make better operation.
Each box maximum can load 24pcs SC fiber optic couplers on plastic adapter plate, unique design ensure stable without mounting screws, but with screw holes if customer need.

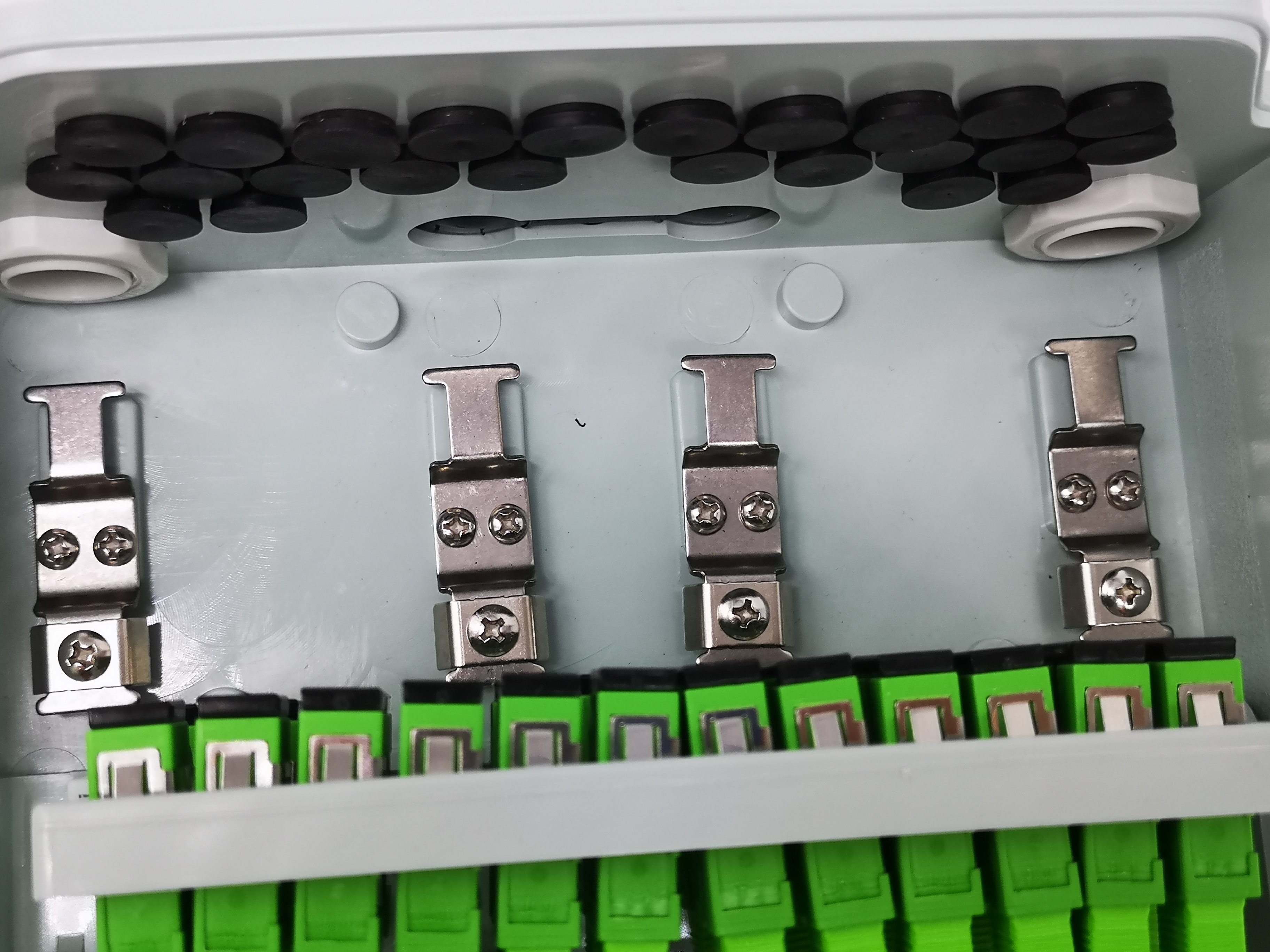

In front of the adapter, it is the cable entry there is stainless steel cable clamps, which screws to fix the cable entry.
The cable entry can be 1 piece mid span for express port, or 2 cable glands; 24pcs cable exit with rubber seal espeicallly use for ftth figure-8 drop cable exit.
Pack information
| Net weight | Inner box | Quantity / carton box | Carton box size | Gross weight/carton box |
| 1.75Kg | cm | 10 pcs | 46*38*59 cm | 21.03 kg |
